| 介質 空氣 最大使用壓力： | DN | 145 PSI | 10 bar | |
| 介質 液壓油 最大使用壓力： | 3000 PSI | 207 bar | ||
| 最大真空度： | 28" Hg | |||
| 最高使用速度（轉子）： | ||||
| DN | 250 RPM | 250 min-1 | ||
| 最高使用溫度： | 120℃ | ＞120℃ 請咨詢創啟旋轉接頭 | ||

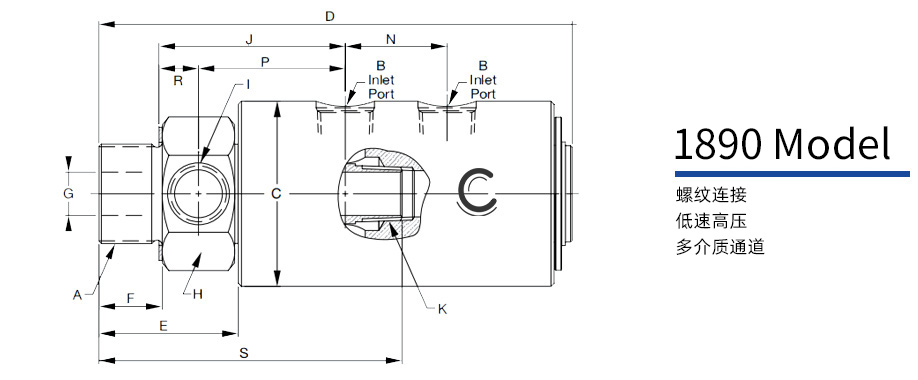

| 1890型兩通路液壓旋轉接頭 - 雙通路 - 螺紋連接 | ||||||||||||||||
| Model | B Port NPT | A Rotor Thread | C Dia. | D | E | F | G Rotor ID | H** Across Flats | I Tap NPT | J Lock-up | K Tap NPT | N | P | R | S | Shpg Wt. |
| 1890-100 | (2)x3?4" | 1-1?2" NPT RH | 3-1?2" | 8-7?8 | 2-5?8" | 1-3?16" | 13?16" | 63.5 | 3?4" | 4-3?32" | 3?4" | 1-29?32" | 2-3?4" | 11?16" | – | 9-3?4# |
| 1890-110* | (2)x3?4" | 1-1?2" NPT RH | 3-1?2" | 8-7?8 | 2-5?8" | 1-3?16" | 13?8" | 63.5 | 3?4" | 4-3?32" | 3?4" | 1-29?32" | 2-3?4" | 11?16" | 5-13?16" | 9-3?4# |
| 1890-060 | (2)x3?4" | G1-1?2" (BSP) RH | 88.9 | 225.4 | 66.6 | 30.2 | 20.6 | 63.5 | 3?4" | 91.3 | 3?4" | 48.4 | 69.8 | 17.5 | – | 4.4 Kg |
| 1790-001-112* | (2)x3?4" | G1-1?4" (BSP) RH | 88.9 | 225.4 | 66.6 | 30.2 | 34.9 | 63.5 | 3?4" | 91.3 | 3?4" | 48.4 | 69.8 | 17.5 | 147.6 | 4.4 Kg |

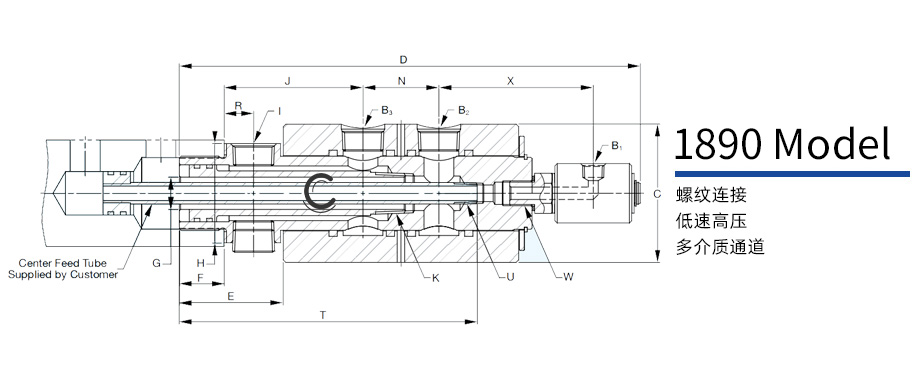

| 1890型兩通路液壓旋轉接頭 - 雙通路 - 螺紋連接 | |||||||||||||||||||||
| Model | A | B1 | B2 | B3 | C | D | E | F | G | H | I | J | K | N | P | R | T | U | W | X | Shpg |
| 1890-116 | 1-1?2" NPT RH | 1?4" | 3?4" | 3?4" | 3-1?2" | 11-17?32" | 2-5?8" | 1-3?16" | 13?16" | 63.5 | 3?4" | 4-3?32" | 3?4" | 1-29?32" | 2-13?16" | 11?16" | 7-1?2" | 1?4" | 5?8"-18 UNF RH | 3-7?8" | 10-3?4# |
| 1890-064 | G1-1/2 RH BSP | 1?4" | 3?4" | 3?4" | 88.9 | 293 | 66.6 | 30.2 | 20.6 | 63.5 | 3?4" | 89 | 3?4" | 48.4 | 69.8 | 17.5 | 190 | 1?4" | 5?8"-18 UNF RH | 97.6 | 4.9Kg |
